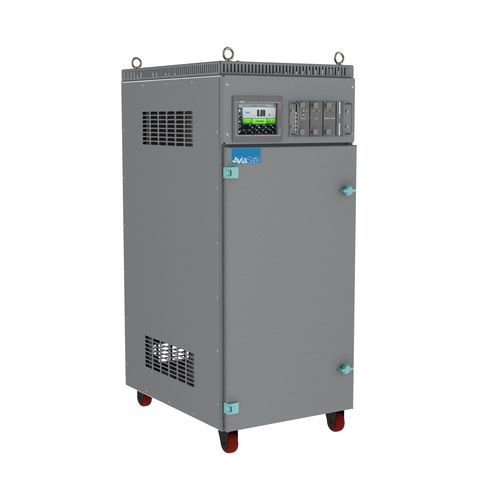

Constant current power supply CCR 800/600

AC/DC

APPLICATION Power and Controling Area COMPLIANCE with ICAO: Aerodrome Design Manual Part5 FAA: AC 150/5345-10, L828 DIMENSIONS Witdh - 850mm Height - 1163mm Length - 800mm & 600mm SPECIFICATION Type - Thyristor Phase Control Rating (Output) - {1, 2.5, 4, 7, 7.5, 10, 15, 20, 25, 30} KW Power Factor - >90% at nominal input and full load Remote Control - 24VDC , 48VDC This Section Constitutes the Control & Monitoring System of the Constant Current Regulator Using a Micro Processor. All Settings and Controls are Made Through a Key Pad and the Actual Values of the CCR are Presented on a HMI and Through LED Indicators. The Main Components of the Control Section are as Follows : • Interface Card • CPU Card • Earth Fault Power Supply Card • DO Card • DI Card FEATURES & BENEFITS Free Standing Unit Housing Divided into Three Areas : Electronic Control, Low Voltage & High Voltage Natural Air Cooled Operating Temperature Range 40- to 55+℃ Output Current : 6.6 or 20 Amps (1 ,3 ,5 or 7 Steps) Option : Non Illumination Step Rating From 2.5 to 30 KW Output Current Regulation %1.0± Efficiency : Not Less Than %90 Open Circuit Protection Input Power Loss Monitoring Elapsed Time Monitoring Local Control Parallel Remote Control Power Factor : Not Less than %90 Over Current Protection Regulation Error Monitoring Lamp Fault Monitoring V1, I1, V2, I2, VA2 Monitoring
