Anti-collision light SuperNova Titania

for aircraftLEDinfrared

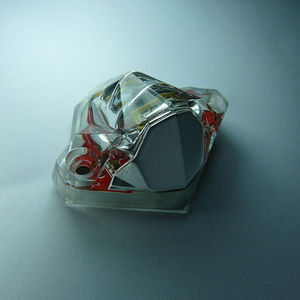

The SuperNova Titania – White/Red anti-collision light is a high powered LED light use in GA and transport category aircraft. It have been designed to be lightweight, with low drag and with a low power draw to meet the highest requirements of all certified aircraft. It contains of red and white LEDs. SuperNova Titania – White/IR is available in white and infrared LEDs. Specification Dimensions (mm): - 199.5 mm x 57.4 mm x 29 mm Dimensions (inches): - 7.854“ x 2.260“ x 1.144“ Weight: - 250g / 0.55lb Operating Voltage Range: - 18-36 V DC Performance at 18-36 V DC, 25°C and 82% DC-DC efficiency: Output current, not less (High mode – H, Low mode – L):White strobe: Red strobe: IR strobe: 0.8A/LED – H; 0.4A/LED – L 0.6A/LED – H; 0.3A/LED – L 0.8A/LED – H; 0.4A/LED – L Output power, not less: White strobe: Red strobe: IR strobe: - 86.4W 30.3W 25.6W Input power, not more: White strobe: Red strobe: IR strobe: - 100W 35W 30W Input current: White strobe branch: Red strobe branch: - 3.6 A (28 V) 1.2 A (28 V) Wavelength (IR): - IR 850nm Repetition Rate of Strobe: - 50 cycles per minute Recommended size of mounting screw: - M4 (DIN912) or SHCS #8-32 Ambient Temperature: - from -55°C to +85°C from -67°F to +185°F Overheat Protection: - Yes (+85°C) Reverse Polarity Protection: - Yes Transient Voltage: - 60V at 2sec max, both polarities Under-Voltage Protection (lockout): - Yes (18V) Over-Voltage Protection (lockout): - Yes (36V) Waterproof, Dust-proof, Shock-proof, Vibration-proof: - Yes
