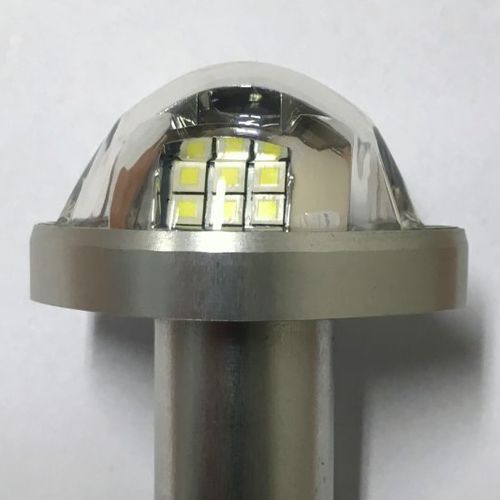

Position light PosiStrobe DayLite

for droneLED

At only 30 millimeters in height (1.180 inch) the new PosiStrobe DayLiteTM is a value light that does not sacrifice anything in performance or standards as other economy – priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category! Specification Dimensions (mm): - 44.9 mm x 55.6 mm x 30 mm Dimensions (inches): - 1.769” x 2.19” x 1.18” Weight (g): - 100 g Weight (oz): - 3.53 oz Operating Voltage Range: - 9 – 36 VDC Input Current – Position: - 0.17A @36V, 0.22A @28V, 0.41A @14V, 0.66A @9V Input Current – Strobe: - 1.6A @36V, 2.0A @28V, 4.7A @14V, 7.1A @9V Input Power - Position: - 6.2W @36V, 6.2W @28V, 5.8W @14V, 5.9W @9V Input Power - Strobe: - 58W @36V, 56W @28V, 65W @14V, 64W @9V Repetition Rate of Strobe: - 50 cycles per minute Recommended size of mounting screw: - M3 Ambient Temperature: - from -55°C to +85°C from -55°F to +185°F Overheat Protection: - YES (+85°C) Reverse Polarity Protection: - YES Transient Voltage: - 80V at 2sec max, both polarities Under-Voltage Protection (lockout): - YES (9V) Over-Voltage Protection (lockout): - YES (36V) Waterproof, Dust-proof, Shock-proof, Vibration-proof: - YES
