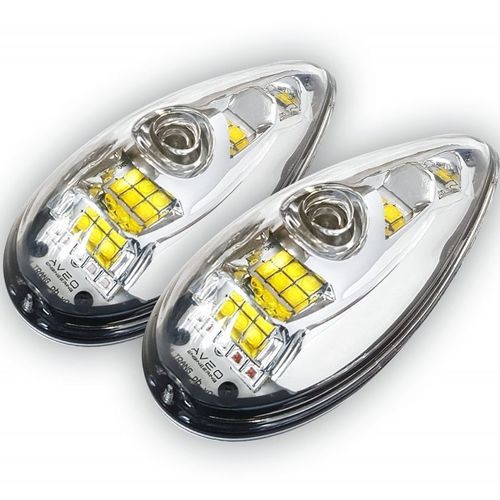

Navigation light Ultra DayLite

for aircraftLEDbuilt-in

At only 34 millimeters in height (1.34 inch) the new Ultra DayLite is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category! Specification Dimensions (mm): - 100 mm x 46.2 mm x 34.1 mm Dimensions (inches): - 3.94“ x 1.819“ x 1.34“ Weight: - 103 g / 3.63 oz Operating Voltage Range: - 9 – 36 VDC Input Power P/N: AVE-WPSTG-64T Mod(4) Nav Green / Rear White Position: - 9 V / 0.56 A : 5.0 W 14 V / 0.36 A : 5.1 W 28 V / 0.19 A : 5.4 W 36 V / 0.15 A : 5.5 W Input Power P/N: AVE-WPSTG-64T Mod(4) Strobe: - 9 V / 6.33 A : 57.0 W 14 V / 2.92 A : 40.9 W 28 V / 1.36 A : 38.1 W 36 V / 1.06 A : 38.2 W Input Power P/N: AVE-WPSTR-64T Mod(4) Nav Red / Rear White Position: - 9 V / 0.55 A : 4.9 W 14 V / 0.36 A : 5.0 W 28 V / 0.19 A : 5.3 W 36 V / 0.16 A : 5.6 W Input Power P/N: AVE-WPSTR-64T Mod(4) Strobe: - 9 V / 6.49 A : 58.4 W 14 V / 2.97 A : 41.6 W 28 V / 1.38 A : 38.5 W 36 V / 1.07 A : 38.5 W Repetition Rate of Strobe: - 50 cycles per minute Recommended mounting screw: - See pictures in section Drawing Torque requirement for screw M5x45mm: - 1.2 Nm Ambient Temperature: - from -55°C to +85°C from -55°F to +185°F Overheat Protection: - Yes (+85°C / +185°F)
