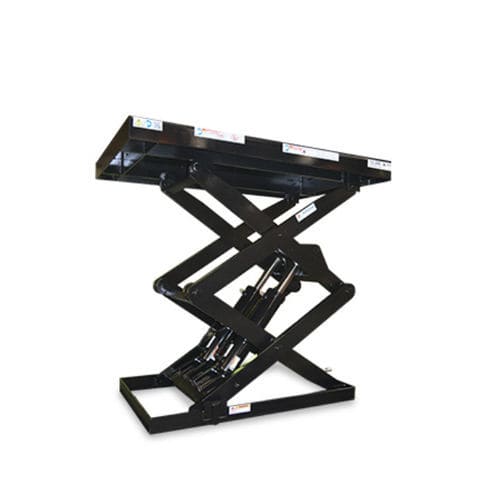

Scissor lift table TorkLift T2 series

for airport

The TorkLift T2 is Autoquip’s premium series of work station hydraulic lifts. Two sets of vertically stacked scissors are pinned directly together, stabilized, and raised simultaneously by common hydraulic cylinders. This heavy-duty scissor lift table design creates a stable structure that consumes less floor space and travels the same vertical distance. Vertical travel ranges from 36″ to 144″ and capacities range from 2,000 to 10,000 lbs. Durability and Quality All scissor rollers are captured within structural steel channels to provide excellent load stability. High impact, spiral wound bearings at every pivot point provide maintenance-free, rugged resistance to abrasion, impact, and uneven loads. Structural cross-members at every pinned joint in the scissor assembly minimizes leg deflection due to twisting or spreading under high/uneven loading. All hydraulic cylinders contain two-piece, self-aligning piston rods that transmit minimal side forces to the cylinder hinges/pins, significantly reducing wear. Structural steel channels in all top and lower frames provide additional rigidity and resistance to twisting/bending of the lift under load. Solid steel legs and added stiffeners provide overall stability and straight, repeatable roller tracking as the lift raises and lowers. Joints, the most critical wear points in the lift, feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life. Minimum 1/4-inch-thick steel-reinforced platform minimizes deck deflection, maximizes load stability, and greatly extends the life of the platform deck. Simplicity Small footprint allows workers to stand closer to the product,
