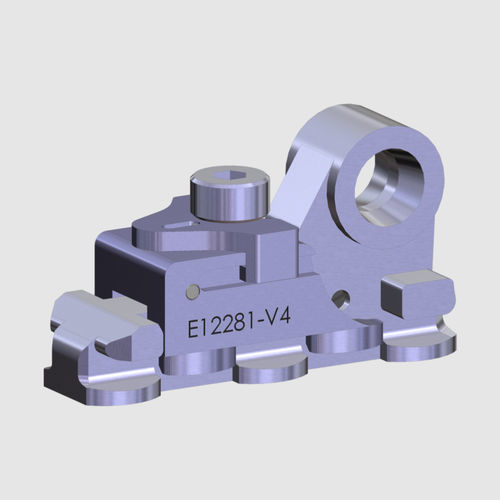

Rear triple stud fitting
Characteristics
Fitting class Single Move
Number of studs 3
Shear Plunger Yes
Fxz (rear) or Fz (front) > 60 kN
Material -
Body - Steel 4140 per AMS 6349
Plunger - Steel 42CrMo4 per EN 10293
Lever
Treatment
Zinc Nickel Type II Grade B per AMS 2417
Zinc Nickel Type II Grade B per AMS 2417
Technical data
Safety indicator
Red
Green
Tool-less
Quick release
Positive engagement
Secured locking
Offset
Captive screw
