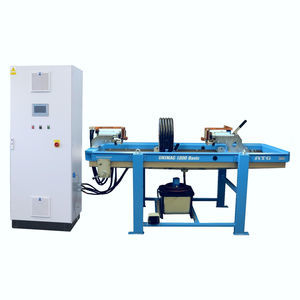

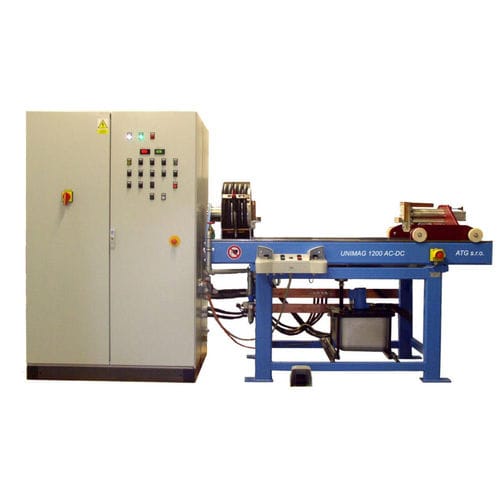

Eddy current tester UNIMAG

for NDTaeronautical

There is a wide range of MPI application in Aerospace industry required by various OEM and MRO. The final selection of MPI bench type is typically determined by the kind of numbers and dimension of the tested product (screws, breaks disc, torque tubes, engine components, landing gears, structural parts etc.), required standards (ASTM E1444, NADCAP, customer P&W, GE, RR, Collins …) and budget. That is why ATG is offering wide range of MPI solution for this sector. The AEROTESTER has been developed to satisfy the highest requirements from Aerospace industry on accuracy, duty cycle, small footprint, Quick Break feature to be able to test wide range of ferromagnetic products from wheel shops, through engine shops up to landing gear shops, or from any OEM´s: Key features of UNIMAG AEROTESTERS NG: AC, HWDC and 3 x FDWC currents, including its demagnetization Minimal current 100 A, Max. current 6, or 10 kA (can be customized) Robust stainless steel welded frame Electrical cabinet located under the frame, minimal footprint Watch dog for current deviation +/- 10 % included in standard price Constant Current Control, Accuracy of pulse period measurement better than 0.1 sec! Duty cycle of machine is 5% on maximal current Pneumatic clamping and special soft feature protects parts against arcing Clamping range 1400, 3000, or 4200 mm (can be adapted if needed) UNIMAG AEROTESTER meets all the requirements acc. ASTM E 1444, ASTM E 709, ASME CODE V.7., AS 7114, EN ISO 9934, GOST 21 105-87, NADCAP and many others. UNIMAG AEROTESTER is also used like a base for any special CUSTOMIZED system e.g. for landing gears, bigger engine components etc.
