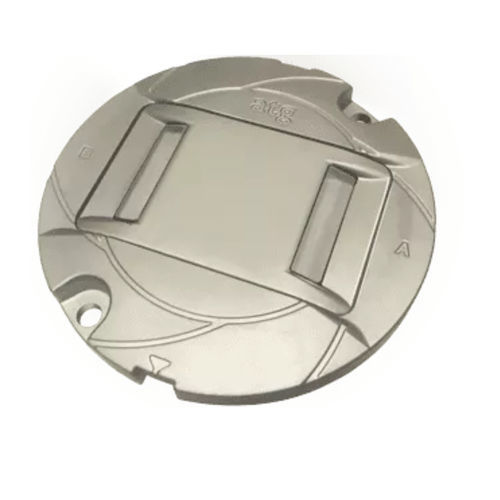

Taxiway light IR852K

for airportLEDgreen

The IR852K is a High intensity, LED Inset, Bi-directional Taxiway Centreline fixture for us on taxiway curved sections. This is suitable for CAT III all weather operation airfield ground lighting (AGL) systems. The goal of the IR range of fixtures, is to enhance the efficiency of an airfield by optimising power consumption, increasing reliability, reducing costs and CO2 emissions to the airport. Compliant with the latest standards ICAO Annex 14. Vol 1 FAA AC 150/5345-46 FAA Engineering Brief No. 67 IEC 61827 EASA Stannag 3316 (NATO) Environmental Conditions Ambient Temperature -55 °C to +55°C (-67 °F to +131°F) Storage Temperature -55°C to +55°C (-67 °F to +131°F) Ingress Protection IP67 Taxiway Centre Line Curved ICAO Fig 2.14 FAA L-852K Colour Green Max/Min Intensity Ratio <3.0 Main rect. average intensity 100 cds Main rect. minimum intensity 50 cds Second rect. minimum intensity 10 cds Typical Measured Values Colour Green Max/Min Intensity Ratio 3.0 Main rect. average intensity 116cds Main rect. maximum intensity (A) 156 cds Main rect. minimum intensity (B) 52 cds Second rect. minimum intensity 52 cds Specification Colour Yellow Max/Min Intensity Ratio <3.0 Main rect. average intensity 100 cds Main rect. minimum intensity 50 cds Second rect. minimum intensity 10 cds Typical Measured Values Colour Yellow Max/Min Intensity Ratio 8.0 Main rect. average intensity 184 cds Main rect. maximum intensity (A) 255 cds Main rect. minimum intensity (B) 85 cds Second rect. minimum intensity 35 cds
