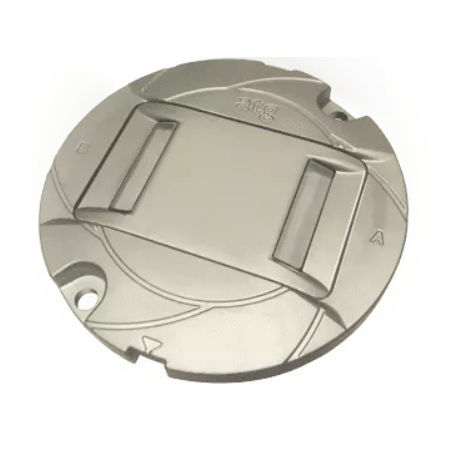

Taxiway light IR852D

for airportLEDIR

The IR852D is a High intensity, LED Inset, Bi Directional/Uni Directional Taxiway Centreline for us on curved sections of taxiways, The fixture is suitable for CAT III all weather operation airfield ground lighting (AGL) systems. The goal of the IR range of fittings is to enhance the efficiency of an airfield by optimising power consumption, increasing reliability, reducing costs and CO2 emissions to the airport. Compliant with the latest standards ICAO Annex 14. Vol 1 FAA AC 150/5345-46 FAA Engineering Brief No. 67 IEC 61827 EASA Stannag 3316 (NATO) Environmental Conditions Ambient Temperature -55 °C to +55°C (-67 °F to +131°F) Storage Temperature -55°C to +55°C (-67 °F to +131°F) Ingress Protection IP67 Taxiway Centre Line Straight (Wide) - FAA L-852D Colour Green Max/Min Intensity Ratio <3.0 Main rect. average intensity 100 cds Main rect. minimum intensity 50 cds Second rect. minimum intensity 10 cds Typical Measured Values Colour Green Max/Min Intensity Ratio (Ref) <3.0 Main rect. average intensity 156 cds Main rect. minimum intensity 57 cds Second rect. minimum intensity 43 cds Specification Colour Yellow Max/Min Intensity Ratio <3.0 Main rect. average intensity 100 cds Main rect. minimum intensity 50 cds Second rect. minimum intensity 10 cds Typical Measured Values Colour Yellow Max/Min Intensity Ratio (Ref) 2.63 Main rect. average intensity 199 cds Main rect. maximum intensity (A) 260 cds Main rect. minimum intensity (B) 83 cds Second rect. minimum intensity 57 cds
