Battery tester BCA

aeronauticalautomatic

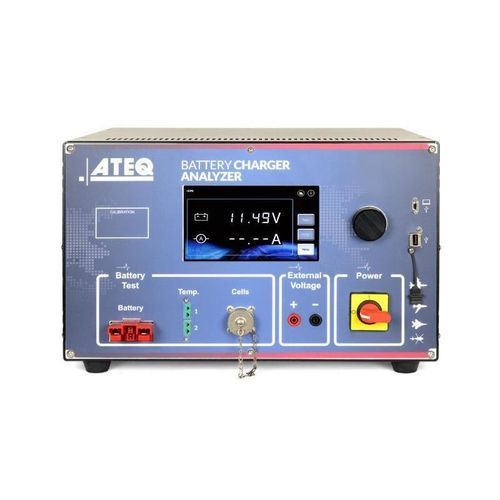

The BCA is a Battery Charger Analyser designed to Charge, Discharge and Analyse all types of battery chemistry in the Aviation industry.It is housed in a metal enclosure with a 7 inch touchscreen control display. All settings and data can be entered via the touchscreen. It is a very easy-to-use and versatile instrument that comes in 2 versions the BCA 75 Volts / 40 Amps or the BCA 48 Volts / 60 Amps. These are the characteristics of both variants: BCA version 75 Volts / 40 Amps • 75 Volts max charge and discharge • 40 Amps max charge • 60 Amps max discharge • Charging 2 batteries – 37.5 Volts each max BCA version 48 Volts / 60 Amps • 48 Volts max charge and discharge • 60 Amps max charge and discharge • Single Battery Charge for 48-60 mode • 2 Batteries in charge mode or 1 battery in full discharge mode • Immediate or delayed test start • Temperature Measurement with type K thermocouples • Alarm for electrolyte level • Shut down at predefined voltages Min, Max or delta V • Shut down as a function of time – Protection against temperature defect • Set up of multiple cycles and / or sequences • Printing and automatic filing of data at the end of the test • Data protection and results saving and backup in case of power shutdown • Test result storage and research by user defined criteria • 7 Inch Touch screen color display • 24 cells voltage measurement • Interface languages: Chinese, English, French, Russian • Computer connections: USB port, RS485 • Fuse protection kit
