Pitot-static tester ADSE 744

pressurefor altimetersaeronautical

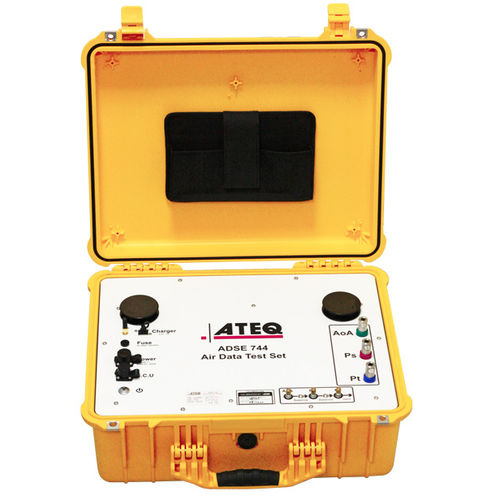

AoA testing has never been so easy The ADSE 744 is the newest of our broad range of pitot and static testers. This Air Data Test Set was specifically designed for the new-generation pitot tubes that integrate sensing probes, pressure sensors and powerful air data computer processing to provide all critical air data parameters including pitot and static pressure, airspeed, altitude, and angle of attack. This pitot static tester is designed primarily for flight line use to cover the testing of all barometric and manometric pressure instrument systems. The AoA (Angle of Attack) channel behaves as a second Ps channel, in order to create a differential pressure between the 2 Ps channel, allowing it to perform simulations of different angles of attack. The large touch screen display, with on-screen help, enables all checks to be carried out easily on the flight deck or in the cockpit, by a single operator. The ADSE 744 is robust and housed in a mobile weatherproof case. An attached bag contains the pressure hoses and electrical cables. • Built-in pressure and vacuum pumps • Liquid crystal color display with touch • sensitive screen for operator instructions/help • Remote control unit based on Windows • CE tablet PC • Complete self check of set before use • High accuracy, high resolution • RVSM compliant • Programmable leak test • Programmable flight envelope to protect • equipment under test • All four primary flight parameters displayed • simultaneously • Programmable (password write protected) • test schedules • Select pressure units: hPa; mb; in Hg; mmHg; • ft; m; kts; km/h, ft/min; hm/min, Mach number
