Pilot electronic flight bag BP5

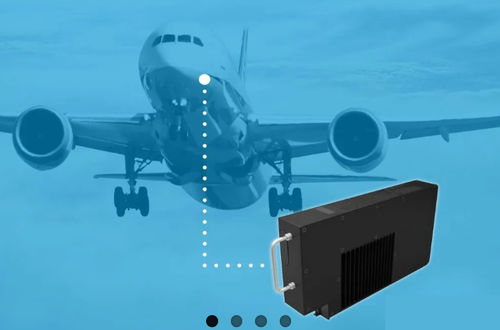

Astronautics’ BP5 Electronic Flight Bag (EFB) is the latest upgrade for the Boeing 787. BP5 is a direct drop-in replacement for the BP4 EFB Electronics Unit (EU) featuring the latest in processor technology, a Windows 10 operating system, and the increased reliability of a solid state drive, resulting in faster application launches, reduced computation times, and faster database loading. A BP5 retrofit on the 787 requires ZERO aircraft changes. It is 100% backwards compatible with current BP4 EU installations, requiring: No downtime for EU removal & replacement No changes to rack, harness, wiring, or display units The new BP5 EFB also has a modular design provisioned for mobile device integration, increased storage capacity, and future processor updates without replacing the entire EU. Windows 10 IoT OS – common with mobile devices Intel Dual-Core i5 – 1.8GHz / 8GB RAM 2 MCU Rack-Mounted – less than 12.0lb / less than 5.45kg 240GB SSD Memory – ability to upgrade capacity ARINC 429 – 16 Rx / 8 Tx ARINC 717 – 1 Rx Ethernet – 5 (100 Base-T) Eth. (Fiber) – 1 (1000 Base-SX) DO-254 DO-178B DAL D DO-160G Environmental Application Launch: 3 min – 2x FASTER Performance Calculation: 30 sec – 8x FASTER Nav Database Load: 20 min – 2x FASTER Processing Power: 10x INCREASE BP5 SSD vs BP4 HDD: 3x MORE RELIABLE Weight Reduction (for 2 EUs): 3LBS / AIRCRAFT
