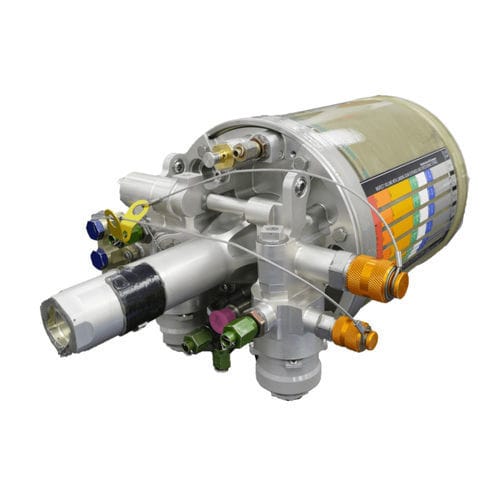

Bootstrap reservoir

Bootstrap reservoirs are provided in hydraulic systems to maintain a sufficient supply of hydraulic fluid to the pump suction under all operating conditions. The term reservoir can be used to describe a range of fluid containers from a simple open tank to a pressurized vessel with multiple means of pressurization. Bootstrap, or self-pressurizing, reservoirs offer “airless” fluid by separating the oil from the environment and closing the hydraulic system. They offer freedom to locate, and orient in any direction, on aircraft and can accommodate any maneuver load, acceleration force or unusual attitude. Finally, they provide constant pump boost pressure regardless of fill level or volume. It is also quite common to add additional features to a pressurized reservoir. It is functionally prudent to include an integral relief valve, which can also serve as a bleeder.Integrating additional system components into the reservoir assembly can be weight effective and enhance reliability. This type of modularization is often incorporated.In the sixty plus years since its founding, Arkwin Industries has emerged as a preeminent designer of such modularized packages incorporated into reservoir assemblies Design Features Most bootstrap reservoirs are provided with additional features. Typical designs include several of the items listed below. • Visual fluid level indication • Remote fluid level indication including: • LVDTs • Potentiometers • Level Switches • Aluminum and composite low pressure cylinder construction • Low friction dynamic seals or diaphragms • Filter modules per Mil-F-8815 • Differential pressure indicators • Low and high pressure relief valves, including filter bypass
