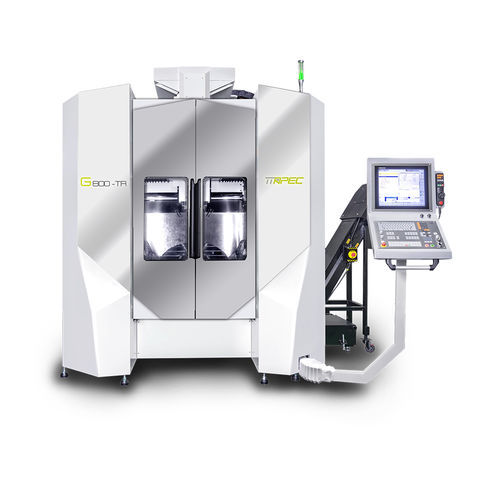

5-axis machining center G800 series

verticalfor the aerospace industrygantry

-Suitable for aerospace engine processing -Rapid traverse could reach 48m/min -High rigidity U-frame structure Three-axis is driven at center of gravity(DCG) The driven centers of the three-axis are all on these gravity centers, which greatly improves the dynamic stability of the structure. Compact trunnion rotary table X/Y/Z axis moving and table rotation are working individually to make sure machining is free from 3 axis inertia influences. The perfect servo-driven design gives excellent machining stability. High rigidity U-frame structure The saddle and column form a closed structure. High rigidity machines could reduce vibration effectively, increase processing stability and improve machining accuracy. The Direct-Drive Motor directly drives the rotary table to provide high-precision machining. The A / C axis are driven by direct-drive motors. The power can be completely transmitted and provides high-precision machining capabilities. A-axis - deg - ±120 C-axis - deg - ±360 A-axis torque(S1/max) - Nm - 4,268/7,554 C-axis torque(S1/max) - Nm - 2,134/3,777 Rapid traverse - m /min - XYZ=48 X.Y.Z axis acceleration - m/sec² - 6 Spindle taper - - HSK63A Spindle power ( S1 / S6) - kW - 20/24 Spindle torque ( S1 / S6) - Nm - 45.5/55 Tool shank - pcs - 32T
