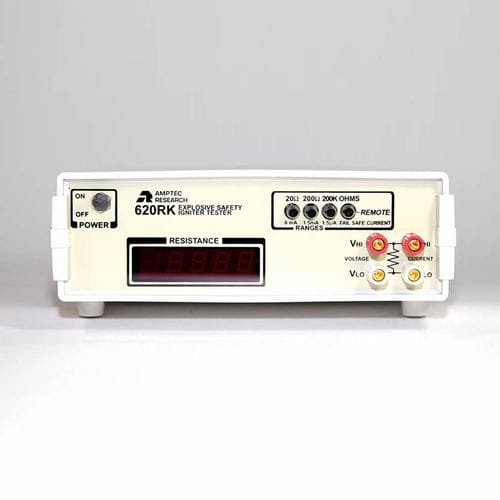

Portable megohmmeter 620RK

4-wirefor the aeronautical industry

The AMPTEC 620RK failsafe ohmmeter was specifically designed for ultra-safe testing on squibs, flares, bridge-wire, and other explosive devices. The 620RK meets mid-range resistance requirements, and comes standard with an (OP-232) RS232C interface, and (OP-247) optically isolated power. This product was derived from the USAF Non-Nuclear Munitions Safety Board approved AMPTEC 620A-4 meter – thus creating a product line that is the industry standard in igniter testing. The 620RK Igniter Tester is a portable digital ohmmeter specifically designed for ultrasafe resistance testing on explosive devices. Approved by the USAF Non-nuclear Munitions Safety Board and compatible with our RS232C Interface (OP-232), this product is the safest and easiest to use in its field. The AMPTEC 620RK offers fail-safe current limiting resistor network circuitry to ensure that instrument test currents cannot exceed 8 mA. In the unlikely event of a component failure, the output current limiting network would still be in effect. If the 620RK had an electrical fault, it offers the life-saving advantage of failing safely. The 620RK is part of a lineage of intrinsically safe igniter circuit testers in the 620 Series product line, enabling you to take high-accuracy resistance measurements across virtually any range from 2 Ω to 20 MΩ. Every AMPTEC product is proudly made from start to finish in the USA and comes with a one-year warranty, plus an N.I.S.T calibration certificate with data at no extra cost. Nominal Current - 5 mA - .5 mA - .5 uA Failsafe Current - 8 mA - 1.5 uA - 1.5 uA Resolution - 1 mΩ - 10 mΩ - 10 Ω Accuracy - ± .02% of reading & range - ± .02% of reading & range - ± .05% of reading & range
