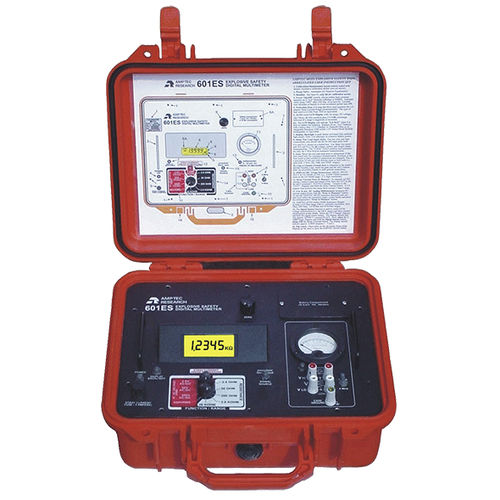

Avionics tester 601ES

aeronauticaldigital

The AMPTEC 601ES Digital Multimeter is used to measure stray voltage and current in harsh weather environments. Additionally, all internal circuits are conformal coated, it contains an internal all-metal Faraday cage, and has a built-in self-test to ensure ultimate integrity of measurement. The 601ES DMM is approved by the NASA/WFF Safety Office for compliance with the WFF Range Safety Manual (RSM) and USAF’s Space Wing (AFSPC), proving its intelligent design is ultra-safe. Designed for military and defense programs, the AMPTEC 601ES DMM is used to measure stray voltage and current. The 601ES comes in a durable, waterproof case and features a built-in self-test to ensure integrity of measurement. Our NASA Range Safety Board and USAF Space Wing Board approvals, custom conformal coated internal circuits, and all-metal Faraday Cage prove that the 601ES is the safest DMM on the market. Nominal Current - 5 mA - 5 mA - 0.5 mA - 50 uA - 5 uA Failsafe Current - 8 mA - 8 mA - 1.5 mA - 150 uA - 15 uA Resolution - 100 uΩ - 1 mΩ - 10 mΩ - 100 mΩ - 1 Ω Accuracy - 2 V to 200 V AC/DC: ± 0.5% of range - 600 V AC/DC: ± 1% of reading range - 2 A AC/DC: ± 0.5% of reading range - 2 Ω to 20 KΩ: ± .05% of (reading + range) Display - 4 1/2 digit LED - Terminals - 4-wire Kelvin Storage Temperature Range - -20 °C to 70 °C - Operating Temperature Range - 0 °C ± 50 °C Dimensions - 9.5″ x 11″ x 5″ - Weight - 8 lbs. Power - 4 ea AA batteries - Max. Input Voltage - 650 VRMS Open Circuit - 1.6 VDC - Max. Failsafe Current - 8 mA Overload - Display flashes “>>>OR” - Update - 300 ms.
