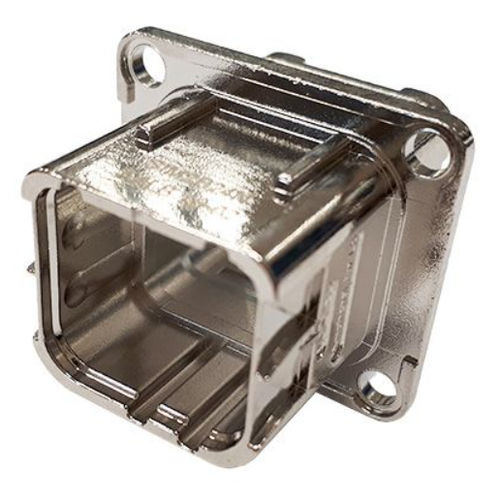

Data connector SIM series

for aircraftrectangularpush-pull

Reach status: Compliant RoHS status: Compliant Obsolescence status: Active Standard: EN4165 | ARINC809 Standard Part Number: EN4165M71AA0U0 Description The EN4165 / SIM Monomodule Series (ARINC 809) connector is a mono modular, push-pull connector that is ideal for In-Flight Entertainment Systems, Cabin Service Systems, and other interconnect system requirements. Especially suited for applications where shielding is mandatory. Key Features Military & Commercial Aerospace specification for rectangular modular connectors Fully qualified and compliant with ARINC 809 specifications Tested and qualified per EN4165 Series specifications Lightweight and robust thermoplastic; metalized for shielding More than 20 different inserts to choose including butt joint and expanded beam optical contacts SIM modules in overmold Technology Fixing accessories, multiple colors, flight caps and 3-pin quick install versions are also readily available Fire/Smoke/Toxicity conform to ABD0031 and FAR 25853 Mechanical Shell plating - Bright nickel Endurance (nbr of cycles) - 500 Vibrations - Type - Random Vibrations - Frequency - From 50 to 2000 Vibrations - Amplitude - 22.6 g Vibrations - Duration - 24 h Shocks - Type - Demi sinusoide Shocks - Amplitude - 100 g Shocks - Duration - 6 ms Resonance frequency - 120 Hz Static load - 10 daN Environment Operating temperature - Min - -55 °C Operating temperature - Max - 175 °C Salt Spray - 500 h Fluid resistance - Withstanding under sprinkling - Fuel, Hydraulic fluids, Cleaning products, De-icing fluids, Cooling fluids Fire Smoke compliance - ABD 0031, EN 2591-317, NFF 16-101, NFF 16-102
