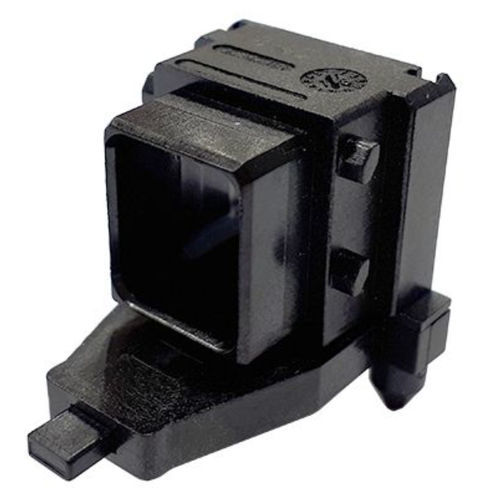

Data connector 3559 series

for aircraftrectangularpush-pull

Reach status: Compliant RoHS status: Compliant Obsolescence status: Active Standard: ABS1152 Description The 3559 connectors Series is a mono modular, push-pull connector that is ideal for In-Flight Entertainment Systems, Cabin Service Systems, Passenger Service Units and other interconnect system requirements. Especially suited for applications where shielding is not necessary. Key Features Commercial Aerospace specification Lightweight and robust thermoplastic Compatible with the whole range of EN4165 / SIM modules SIM modules in overmold Technology Feed-thru and 3-pin quick install versions are readily available Fire/Smoke/Toxicity conform to ABD0031 and FAR 25853 Mechanical Insert retention in shell (> to) - 25.4 daN Endurance (nbr of cycles) - 100 Vibrations - Type - Sinusoide Vibrations - Frequency - From 10 to 3000 Vibrations - Amplitude - 20 g Vibrations - Duration - 12 h Shocks - Type - Demi sinusoide Shocks - Amplitude - 50 g Shocks - Duration - 11 ms Static load - 40 daN Environment Operating temperature - Min - -55 °C Operating temperature - Max - 175 °C Salt Spray - 500 h Fluid resistance - Withstanding under sprinkling - Fuel, Hydraulic fluids, Cleaning products, De-icing fluids, Cooling fluids Sealing Interfacial - 147 hPa Immersion at low air pressure - 147 hPa Fire Smoke compliance - ABD 0031, EN 2591-317, NFF 16-101, NFF 16-102 Weight Weight - 7.75 g
