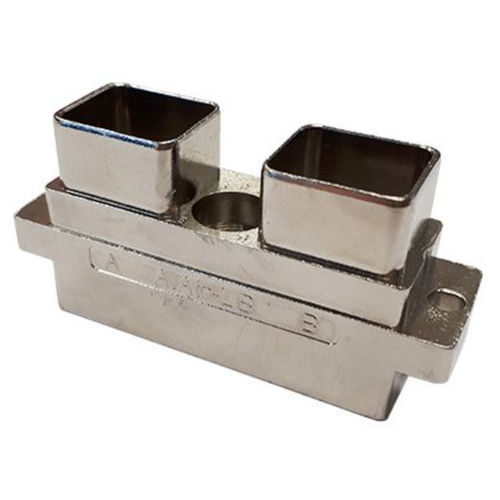

Data connector SIM series

RFhydraulicfor aircraft

Reach status: Compliant RoHS status: Compliant Obsolescence status: Active Standard: EN4165 Standard Part Number: MBBN3330MD42S00 | EN4165M0A2 Description EN4165 / SIM is a modular, multifunctional rectangular connector. It consists of shells and modules, which together create an integrated solution, supporting advanced signal and power requirements at a fraction of the space. Its flexibility and simplicity during design and operation, makes SIM a competitive alternative for a wide range of applications. They come in composite version for weight saving applications. Key Features Military & Commercial Aerospace specification for rectangular modular connectors Space efficient & modular design SIM modules in overmold Technology Versatility of mixing & matching (RF, Quadrax, Triax, Twinax and Coax, Fiber Optics, RJ45, Signal & Power) Available in standard Mono, 2 & 4 bay, or custom configurations EN4165 specification is comparable to U.S. MIL-STD-810 in performance Fire/Smoke/Toxicity conform to ABD0031 and FAR 25853 Mechanical Shell plating - Bright nickel Endurance (nbr of cycles) - 500 Vibrations - Type - Random Vibrations - Frequency - From 50 to 2000 Vibrations - Amplitude - 22.6 g Vibrations - Duration - 24 h Shocks - Type - Demi sinusoide Shocks - Amplitude - 100 g Shocks - Duration - 6 ms Resonance frequency - 128 Hz Static load - 10 daN Environment Operating temperature - Min - -55 °C Operating temperature - Max - 175 °C Salt Spray - 500 h Fluid resistance - Withstanding under sprinkling - Fuel, Hydraulic fluids, Cleaning products, De-icing fluids, Cooling fluids Fire
