Miniature gyroscope system CRS07

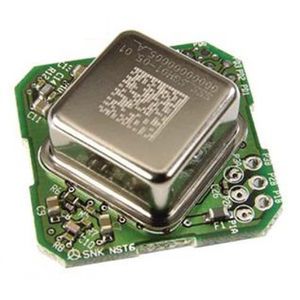

Embedded gyroscoop sensor CRS07 (unpackaged) - Angular Rate Range: ±573°/s - Output: Analogue voltage (ratiometric) - Nominal: 3.49mV/°/s, 20mV/°/s - Non-linearity: < ±0.5% FS - Ultra-small size - High rate range option - Excellent performance over temperature - Repeatable drift characteristic CRS07 (unpackaged) - Angular rate sensor A robust and affordable mass-produced miniature gyroscope for applications in which space is critical. Angular rate sensors are used wherever rate of turn sensing is required without a fixed point of reference. The sensor will output a DC voltage proportional to the rate of turn and input voltage. High performance motion sensing even under severe shock and vibration. Whatever your application, the unique silicon ring technology, coupled with closed loop electronics, gives advanced and stable performance over time and temperature, overcoming the mount sensitivity problems experienced with simple beam or tuning fork based sensors.
