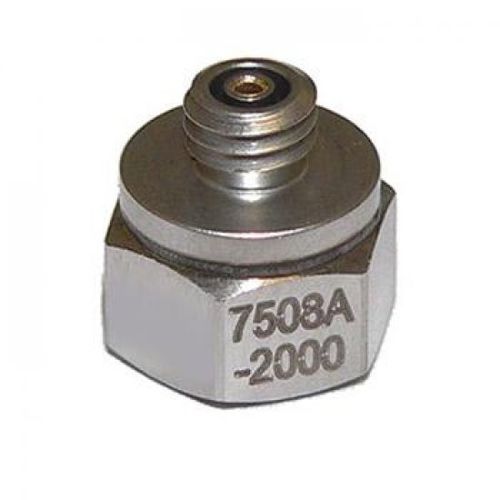

Accelerometer without display 7508A

piezoelectricvibratingfor the aerospace industry

High temperature vibration sensor 7508A - Sensitivity: 4.0 to 5.6 pC/g? - Range: ±4000g - Max. frequency response: 0.3 to 7000 HZ - Operating temperature: -73°C to +200°C 7508A Accelerometer - +200°C Charge Output Accelerometer - 5.6pC/g Output, 7kHz Bandwidth - Hermetically Sealed - Miniature, Adhesive Mount The Model 7508A is a miniature piezoelectric charge mode accelerometer designed for high frequency vibration and shock measurements at temperatures up to +200°C. The accelerometer incorporates an annular shear mode crystal installed with a compression ring that eliminates the usage of epoxies that can affect long term stability at elevated temperatures. Featuring a nominal charge output of 5.6pC/g, the model 7508A offers a high signal to noise ratio in a miniature adhesive mount package. Features - Wide bandwidth up to 7kHz - -73°C to +200°C Operating Range - Stainless Steel Housing - Annular Shear Mode - Adhesive Mounting - Isolated from Mounting Surface Applications - Vibration & Shock Monitoring - High Temp Applications - Flight Testing - High Frequency Applications - Small Structures Monitoring
