Accelerometer without display 7502A

piezoelectricfor the aerospace industry

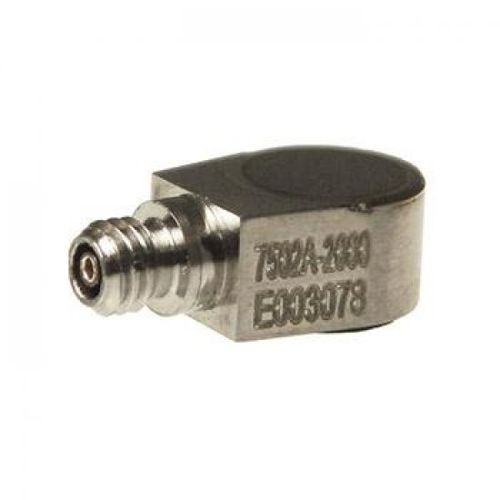

High temperature vibration sensor 7502A - Sensitivity: 1.0 to 1.8 pC/g? - Range: ±5000g - Max. frequency response: 14.000 HZ - Operating temperature: -73°C to +260°C 7502A Accelerometer - +260°C Charge Output Accelerometer - 1.8pC/g output, 14kHz Bandwidth - Hermetically Sealed - Miniature, Lightweight (0.8gm) The Model 7502A is a miniature piezoelectric charge mode accelerometer designed for high frequency vibration and shock measurements. The accelerometer incorporates an annular shear mode crystal that provides stable thermal response up to +260°C. The model 7502A is hermetically sealed and features a nominal charge output of 1.8pC/g. The miniature and light weight Titanium package renders the accelerometer ideal for applications requiring minimal mass loading. Features - ±5000g Dynamic Range - Wide bandwidth up to 14kHz - -73°C to +260°C Operating Range - Adhesive Mount - Titanium Housing - Annular Shear Mode - Isolated Mounting Surface Applications - Vibration & Shock Monitoring - High Temp Applications - Flight Testing - High Frequency Applications - Small Structures Monitoring
