Accelerometer without display 3255AtriaxialMEMSmV
Add to favorites
Compare this product
Characteristics
- Type
- without display
- Number of axes
- triaxial
- Technology
- MEMS
- Output signal
- mV
- Domain
- for the aerospace industry
- Acceleration range
Max.: 4,903 m/s²
(16,086 ft/s²)Min.: 245 m/s²
(804 ft/s²)- Frequency
Max.: 1,500 Hz
Min.: 0 Hz
Description
Embedded accelerometer 3255A
- Measurement range: ±25 to ±500g
- Non-Linearity: ±0.5%FSO
- Output: 4.0-80.0 mV/g
- Operating temperature: -54 to +121°C
- Frequency response: Up to 1500Hz

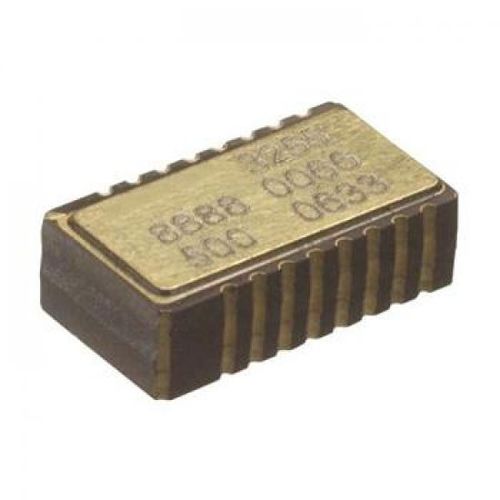

Model 3255A Accelerometer
- PC Board Mountable Accelerometer
- Amplified Output
- Temperature Compensated
- High Over-Range Protection
The Model 3255A is a signal conditioned board mountable MEMS accelerometer available in ±25g to ±500g ranges. The package can be mounted in one of two orientations, allowing the measurement axis to be either parallel or perpendicular to the mounting surface without the use of costly brackets. The accelerometer incorporates integral temperature compensation and offers a flat frequency response from DC to 1500Hz.
Features
- ±25g to ±500g Ranges
- Three Axis Mounting Options
- Surface Mount Package
- DC Response, Gas Damping
- Hermetically Sealed
- 5Vdc Excitation
Applications
- Impact & Shock Testing
- Vibration & Shock Monitoring
- Embedded Applications
- Transportation Measurements
