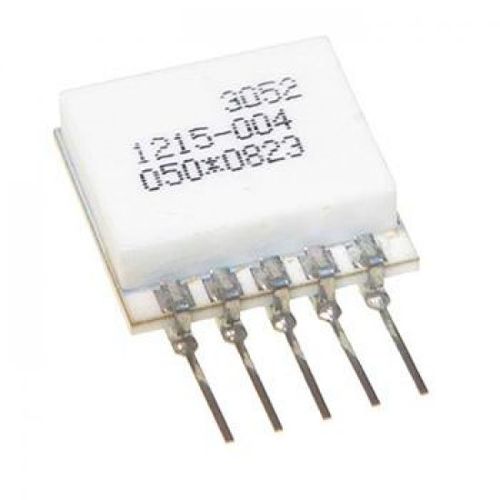

Accelerometer without display 3052A/3058A

MEMSpiezoresistivemV

Embedded accelerometer 3052A/3058A - Measurement range: ±2 to ±100g - Non-Linearity: ±1.0 %FSO - Output: 0.24-16.0 mV/g - Operating temperature: -40 to 125°C - Frequency response: Up to 1300Hz Model 3052A Accelerometer - Piezoresistive MEMS - DC Response, Gas Damped - Circuit Board Mountable - Integral Temp Compensation The Model 3052A is a silicon MEMS accelerometer with integral temperature compensation. The accelerometer is packaged on a ceramic substrate with an epoxy sealed ceramic cover and is designed for adhesive mounting. The accelerometer is offered in ranges from ±2g to ±100g range and provides a flat frequency response to minimum 1500Hz. The silicon MEMS sensor is gas damped and incorporates over-range stops for high-g shock protection. For a similar accelerometer designed for bolt mounting, see the model 3058A Features - Adhesive Mounted - ±1.0% Non-Linearity - 0 to +50°C Temp Compensation - Built-in Over-range Stops - Low Power Consumption Applications - Vibration & Shock Monitoring - Motion Control - Impact & Shock Testing - Transportation Measurements - Embedded Applications - Machinery
