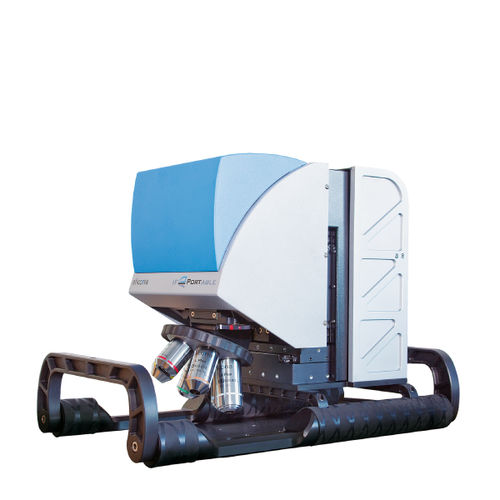

Optical coordinate measuring machine PortableRL

for aeronautics3Dportable

PortableRL is a mobile 3D measurement system for quality assurance of micro structured surfaces. Users verify measurement fields of up to (mm) 50x50x26. The system is applied for both curved and flat components. A battery pack allows a flexible use and mobile positioning, enabling the use of the system wherever needed. A large vertical scanning range allows the measurement of various geometry types and forms. Amongst others, fields of use are platen inspection, asphalt measurement, quality assurance of turbine or rotor blades, 3D measurement of steel and body parts. High measuring point density Up to 500 million measurement points ensure a meticulously detailed measurement with tolerances in the μm and sub-μm range along with large working distance. The high measurement point density of Focus-Variation enables operators to gain a consistently high lateral and vertical resolution across high measurement volumes. Measurement of steep flanks Light coming from different directions is used to positively influence a measurement. The measurement of the maximum flank angle is not restricted by the numerical aperture of an objective. Depending on the surface users measure surfaces with slope angles up to 87°. Varying surface reflections SmartFlash allows high resolution measurements of materials with varying surface characteristics or reflectivity. Modulated light provides optimal illumination throughout the whole measurement area. Users measure glossy, ground, rough, reflective and diffuse components.
