Optical coordinate measuring machine EdgeMaster

for aeronautics3D

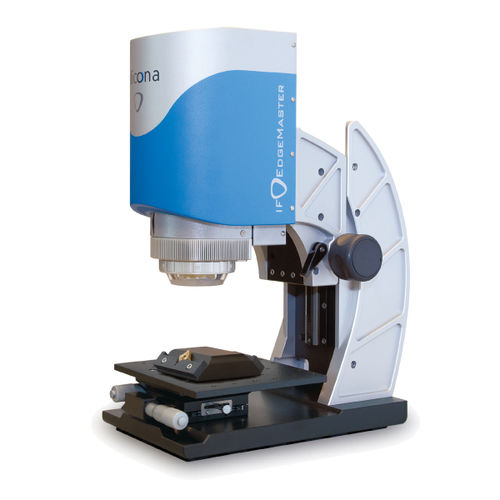

The EdgeMaster is an optical 3D measurement device for automatic tool measurement on the shop floor. Cutting edges of inserts, drills, millers and other round tools are measured regardless of type, size, material or surface finish. Users measure radii >2μm as well as rake, wedge and clearance angle of tools. Different types, including both waterfall and trumpet, are precisely measured. Traceable and repeatable results are delivered in high vertical resolution even at vibrations, variations in temperature and ambient light. In addition to chipping measurement, the high vertical resolution also enables traceable roughness measurement on the rake face. High measuring point density Up to 500 million measurement points ensure a meticulously detailed measurement with tolerances in the μm and sub-μm range along with large working distance. The high measurement point density of Focus-Variation enables operators to gain a consistently high lateral and vertical resolution across high measurement volumes. Measurement of steep flanks Light coming from different directions is used to positively influence a measurement. The measurement of the maximum flank angle is not restricted by the numerical aperture of an objective. Depending on the surface users measure surfaces with slope angles up to 87°. Varying surface reflections SmartFlash allows high resolution measurements of materials with varying surface characteristics or reflectivity. Modulated light provides optimal illumination throughout the whole measurement area. Users measure glossy, ground, rough, reflective and diffuse components.
