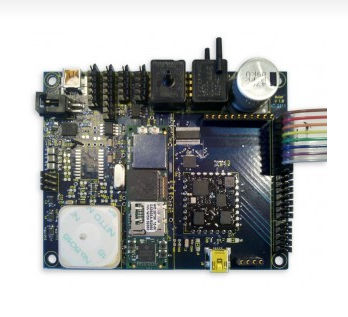

Drone autopilot Avior 100

drone autopilot
drone autopilot
Add to favorites
Compare this product


Characteristics

Applications
for drone

Description

The ATI Avior autopilot is an advanced design built around high performance, high quality, state of the art components and sensors. The CPU is a 600 Mhz OMAP 3503, offering 256 Mb of Flash and 256Mb of RAM. The core sensors include a Vectornav VN100T IMU and the Ublox Neo 6 GPS. The firmware is built around an advanced 15-state kalman filter that blends the inertial and gps sensor data to accurately estimate roll, pitch, and true yaw angles. The ATI Avior offers unprecedented performance, accuracy, and capabilities in a small package and at a competitive price.Specifications Dimensions: 103mm x 82mm x 13mm Weight: 68grams Texas Instruments OMAP 3503 CPU (600 Mhz ARM Cortex-A8, up to 1200 Dhrystone MIPS) 256Mb RAM, 256Mb Flash, MicroSD slot I2C, SPI, 1-wire UART, High Speed USB Host and USB OTG, Ethernet 8 PWM in, 8 PWM out, 6 Analog in Professional double-sided SMT (Surface-Mount Technology) Mil-Spec available 5 – 44.4V input voltage range 0C < T < 85C rated VectorNav VN100/VN100T IMU Accelerometer range: +/- 2g / 6g Gyro range: 500 deg/sec Magnetometer range: 6 gauss Shock limit: 1000g (unpowered), 500g (powered) Advanced 15-state Kalman filter with true-heading estimation (INS/GNS) 100hz filter update rate Ublox Neo 6 GPS 5 Hz navigation rate Anti-jamming technology Cold starts: 26 s, Hot starts: 1s Radio modem: direct plug-in support for Digi 900 Mz XTend modem — serial or IP connection provided for external modemand hardware.
