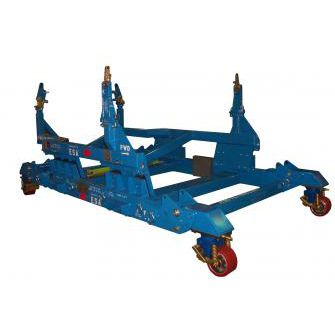

Engine transporter AM-2380

for airport

• Designed to transport/store JT9D-7Q engine in QEC configuration • Compliant with design loads, dynamic loads, & interfaces identified in Pratt & Whitney Purchase Performance Specification 1718 • Capable of being shipped on main deck of B747 freighter aircraft • Engine pins securely into place quickly & easily • Manual bootstrapping capabilities for B747 aircraft incorporated • Document container secured to base for all manuals & documents • Stand can be lifted via forklift from either side • Cradle (AM-2380-126) includes optional risers allow inlet cowl to be stored on engine when mounted in stand Mobility: • Supported by four (4) retractable caster assemblies o Each assembly offers 5” wide x 10” diameter wheel for easy mobility & weight capacity of 5,000 LBS each o Standard shock-absorbing polyurethane tread wheels, position locks, & face brakes o All four assemblies designed to pin in elevated position for air/truck transport • Towable from aft end only o Tow bar storage provided on stand • Maximum towing speed (with engine) of 5 Km/h or 3 MPH Dimensions* & Weight: • Without Engine: 70.0” (Height) x 97.0” (Width) x 162.0” (Length) / 3,960 LBS • With Engine: 106.5” (Height) x 97.0” (Width) x 250.0” (Length) / 13,200 LBS
