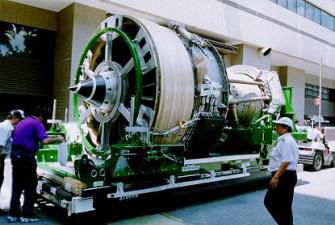

Engine transporter 190100

for airport

• Designed to transport Trent 800 engine for B777-200 & B777-300 aircraft by truck/air o Can also be used as direct platform for removal/installation of engine when used in conjunction with bootstrap equipment supplied by aircraft manufacturer • Easily convertible to truck or air shipment configuration using self-contained lift lower & rotate mechanism compliant with applicable Rolls-Royce design specifications Dimensions & Weight: • Length (Without Engine – Truck Ship): 285” • Length (Without Engine – Air Ship): 307” • Length (With Engine): 322” • Width (Truck Ship Position): 140” • Height (With Engine in Air Ship Position): 122.25” • Height (Without Engine): 84.26” • Height (Without Engine in Collapsed Position): 55” • Weight: 12,500 LBS Optional Accessories: • 190245 Outrigger/Jacking Leg Kit o Raises or lowers the stand 29.1" (74 cm) for loading on or removal from a truck trailer without the need of a forklift or overhead lifting device • 190250 Engine Sling o 30,000 lbs load capacity with lifting ring CG adjustment fixture
