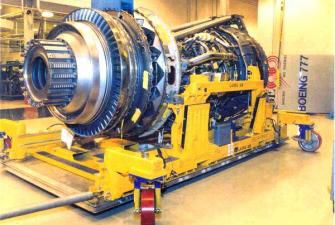

Engine transporter AGSE-E036-G01

for airport

• Designed to transport/store GE90 engine propulsor • Accommodates fan separation (with/without inlet cowl) • Compatible with: o Fan Case/Inlet Transportation Stand (9C6002) o Fan Transfer Dolly (9C6017) supported by mounted transfer rails • Capable of bootstrapping full GE90 engine on B777 aircraft • Stand (with propulsor) suitable for air transport on main deck of B747 freighter • Document container located on AFT end of cradle for all manuals & documents Mobility: • Consists of separable base & cradle weldment o Base supported by four (4) shock-absorbing caster assemblies • Each caster assembly offers 5” wide x 16” diameter wheel for easy mobility & weight capacity of 6,500 LBS each • Shock-absorbing polyurethane tread wheels, position locks, & face brakes • All four caster assemblies designed to pin in elevated position for air/truck transport • Towable from both ends o Includes tow bar storage • Maximum towing speed for entire stand (with full engine/propulsor) is 5 Km/h or 3 MPH • Integral truck shipping shock mounts cushion transportation & rough handling vibrations/shocks • Tie-down rings located on base to secure stand to “air-ride” suspension truck trailer for truck shipment Dimensions & Weight: • Without Engine: 64”* (Height) x 102.0” (Width) x 210.0” (Length) / 8,080 LBS • With Propulsor (Air/Truck Ship Configuration) Casters Up: 101.6” (Height) x 102.0” (Width) x 252.0”** (Length) / 21,480 LBS*** • With QEC Engine on Casters: 170.5”**** (Height) x 154.0” (Width) x 319.0” (Length) / 26,080 LBS*****
