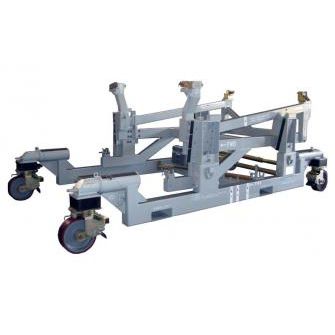

Engine transporter 9C6001G07

for airport

• Designed to store/transport GE90 Engine employed on a B777 aircraft • Consists of a base (9426M22G08) & cradle (9426M23G07) • Cradle is bootstrap capable to the B777 • Compatible with the following protective covers (click on part number links to find out more): o Protective Engine Covers: 9C1103P04 & 9C1103P05 o Protective Propulsor Covers: 9C1104P03 & 9C1104P04 • Can be lifted with engine installed using the following (click on part number links to find out more): o Engine Shipping Stand Lift Fixture: 9C6021 o Multi-Purpose Sling: AM-2872-100 • Compatible with the following engine dollies (click on part number links to find out more): o Fan Case Transfer Stand: AGSE-E100-G01 (9C6030P01) o Fan Case Transport Dolly: AGSE-E167-G01 Mobility: • Supported by four (4) retractable caster assemblies • Single wheel assemblies have capacity of 8,000 LBS • Shock-absorbing Polyurethane tread wheels, swivel locks, & face brakes • All four (4) caster assemblies pin in elevated position for air/truck transport • Can be towed from either end • Tow bar storage • Maximum towing speed (with engine) of 5 km/hr or 3 MPH
