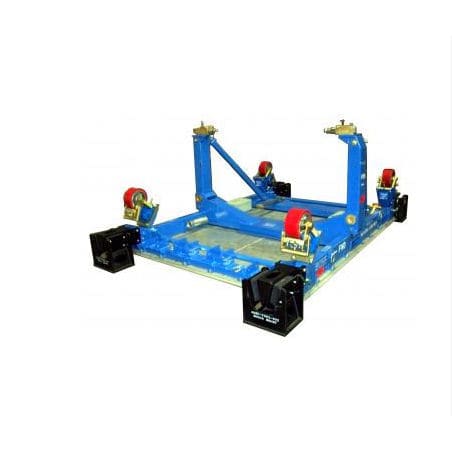

Engine transporter AGSE-E207-G01

for airport

• Designed to transport/store CFM56-7 engine in QEC configuration (ready-for-installation) in height-restricted air shipping mode • Stand with engine (with inlet cowl & exhaust nozzle removed) can be air shipped in following freighters: o A300F, A310F & A330F o An-22, An-124 & An-225 o B707-300F o B727F, B747F, B757F, B767F & B777F o B737-100/-200F & B737-300/-400/-500F o B737NGF o C-130 o DC-8 o DC-10F o IL-76 o L-100 o MD-11F o Tu-204 • Bootstrapping capabilities incorporated • Engine pins securely into place quickly & easily • Document container secured to stand for all manuals & documents • Complies with all CFMI Specifications Mobility: • Consists of frame weldment supported by four (4) caster assemblies • Four (4) swivel-type casters with brakes & swivel locks enable unit for transport around immediate work area o Each assembly offers 5” wide x 10” diameter wheel for easy mobility & weight capacity of 5,000 LBS each o Shock-absorbing polyurethane tread wheels, position locks, & face brakes o Designed to pin in elevated position for air/truck transport of entire stand • Tow bars stow on frame when not in use • Maximum towing speed of 5 Km/h or 3 MPH • Optional shock mounts cushion truck shipping vibrations/shocks Dimensions* & Weight: • Without Engine: 59” (Height) x 96” (Width) x 129” (Length) / 3,684 LBS • With Engine: 82” (Height) x 96” (Width) x 129”** (Length) / 8,837 LBS
