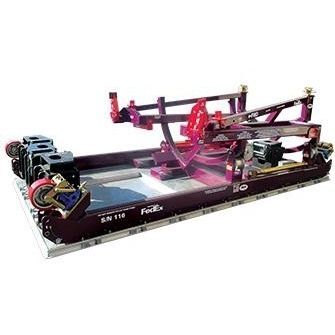

Engine transporter AM-2538

for airport

• Licensed by GE Aviation to transport/store CF6-80C2 engine in modified QEC configuration (without inlet cowl) • Compliant with applicable General Electric engine handling specifications • Suitable (with engine) for air transport on main deck of B747, DC-10, & MD-11 freighters o Bootstrapping capabilities for MD-11 aircraft o Optional adapters for B747/B767 & A300/A310 aircraft • Includes self-contained manual jackscrew for rotating Cradle (and engine) 35° to achieve maximum shipping height of 101” • Shock mounts pin into position to cushion truck shipping vibrations/shocks • Storage for shocks provided on base assembly • Document container secured to base for all manuals & documents • Tie-Down Provisions available (click on part number link below to find out more): Mobility: • Consists of separable base & cradle weldment • Base supported by four (4) shock-absorbing caster assemblies o Each caster assembly offers 5” wide x 10” diameter wheel for easy mobility & weight capacity of 5,000 LBS each o Shock-absorbing polyurethane tread wheels, position locks, & face brakes o Designed to pin in elevated position for air/truck transport of entire stand • Can be raised via forklift from only right-hand side • Towable from either end o Includes tow bar storage • Maximum towing speed of 5 Km/h or 3 MPH
