Nose docking system AGSE-D037

wingtailmovable

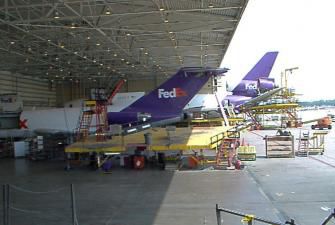

The AGSE-D037 Modular Dock System provides access to service and maintain the DC10, MD11, and A300-600 Aircraft. Vertical dock adjustment is provided by pin legs spaced at three inch intervals. This will accommodate the various aircraft jacking heights. Access to various deck levels is accomplished by stairs attached to each dock module. ‘Clip-on’ stairs are included to adjust stair height over the vertical travel range of the dock modules. Each module is caster mounted for easy positioning. Utilities, such as pneumatic, electric, and lighting are included on the various dock modules. The AGSE-D037 configuration consists of the following modules: Part Number Quantity Description AM-1156-600 1 Lower Deck Cargo Stand (Forward) AM-1156-627 1 Lower Deck Cargo Stand (Aft) AM-1410M-101 1 Horizontal Stabilizer Stand (LH) AM-1410M-102 1 Horizontal Stabilizer Stand (RH) AGSE-D009-G01 1 Four Section Wing Dock (LH and RH) AGSE-D010-G01 1 Main Deck Cargo Stand AGSE-D011-G01 1 Air Conditioning Access Stand AGSE-D025-G01 1 Wheel Well Stand AGSE-D029-G01 1 Tail Stand AGSE-D030-G01 1 Nose Dock AGSE-D033-G01 1 Wing Root Filler Stand (LH) AGSE-D033-G02 1 Wing Root Filler Stand (RH)
