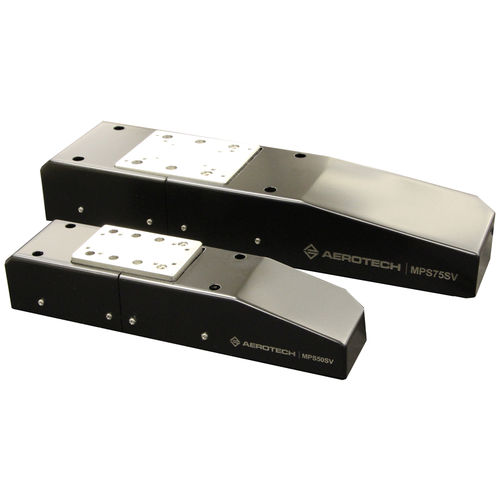

Electric actuator MPS50SV , MPS75SV

rotarylinearfor aircraft

Design Features Compact, high-performance elevation stage Precision-ground ball screw or lead screw DC or stepper motor options High-vacuum capable Precision crossed-roller bearings Multi-axis configurations available with MPS linear and rotary stages Aerotech’s MPS-SV series lift stages provide high-performance elevation motion in a compact, cost-effective design. Offered in two sizes (MPS50SV and MPS75SV), these lift stages are perfect for applications ranging from light-duty laboratory research to high-duty-cycle production processes. Multi-axis stage configurations can be assembled easily with other MPS linear and rotary stages using the multitude of adapter brackets and mounting compatibility inherent in the entire MPS stage family designs. High-Accuracy Construction All MPS-SV stages feature a precision-ground ball screw and preloaded crossed-roller bearings providing smooth and accurate geometric performance, exceptional accuracy and repeatability, and 0.05 µm minimum incremental motion capabilities. The MPS50SV is also offered with a lead-screw drive option for more cost-sensitive applications.
