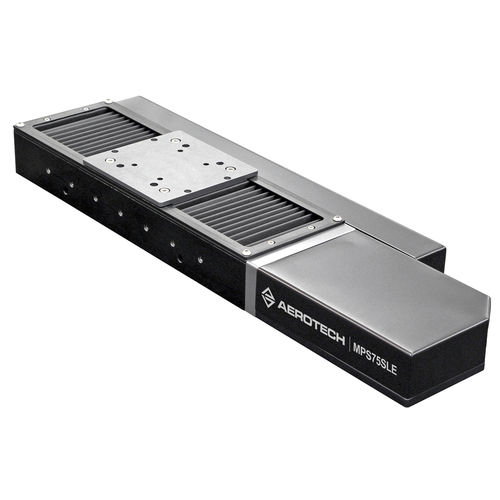

Electric actuator MPS75SLE

linearfor aircraftwith servo-motor

Design Features Compact stage with travels to 100 mm Low-thermal expansion glass-scale linear encoder Precision-ground ball-screw drive DC servo or stepper motor Anti-creep crossed-roller bearings High resolution (0.025 µm), repeatability (±0.1 µm) and accuracy (±0.75 µm) Optional bellows waycovers Compact multi-axis configurations Aerotech’s MPS75SLE is a compact, high-performance linear positioning stage offering the benefits of direct measurement feedback via a linear encoder. The MPS75SLE is the ideal high-accuracy stage for applications in optics positioning, z-axis positioning of sensors in surface metrology, or high-precision alignment. Multi-axis stage configurations can easily be assembled with other MPS linear and rotary stages using the multitude of adapter brackets and mounting compatibility inherent in the entire MPS stage family. Ultra-Precise Design The precision ground, preloaded ball-screw coupled with the linear encoder provide outstanding accuracy, repeatability and a positioning resolution capability to 25 nm. The anti-creep crossed-roller bearings provide exceptionally smooth travel and high-load capacity in a compact package.
