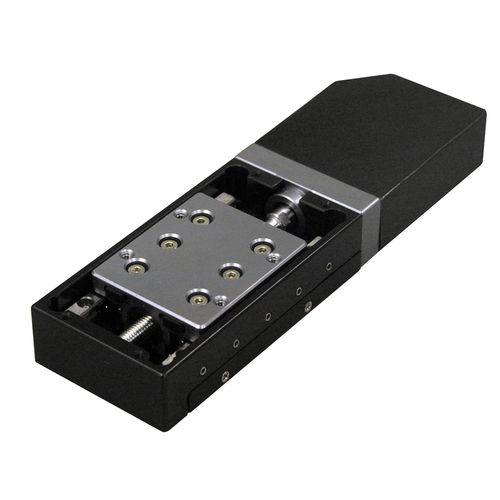

Electric actuator MPS50SL

linearfor aircraftservo-motor

Design Features Compact 50 mm width with travel to 50 mm Precision ground ball-screw or lead-screw drive DC servo or stepper motor Crossed-roller bearings High resolution (0.1 µm), repeatability (±0.75 µm), and accuracy (±1.5 µm) High vacuum capable Compact multi-axis configurations The MPS50SL is a compact, high-performance linear positioning stage that is perfect for the confines of the laboratory while providing the high reliability required in a production environment. It is the ideal choice for measurement, testing, accurate alignment and component assembly in space-constrained applications. High Accuracy The precision ground ball-screw or lead screw provides exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 0.1 micron. The DC servomotor is equipped with a rotary encoder. The crossed-roller linear bearings provide smooth travel and excellent payload characteristics.
