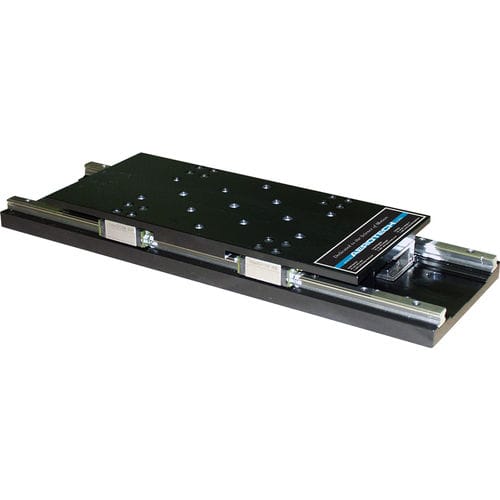

Electric actuator ALS135

linearfor aircraftstepper

Design Features Direct-drive linear motor for ultra-precise motion High-accuracy noncontact linear encoder Outstanding performance in a small footprint Linear Motor Drive Unlike many stages that utilize a side-drive lead screw, the ALS135 employs a center-driven, non-cogging linear motor as the driving element. Since the linear motor is a direct-drive device there is no backlash, windup or “stiction” that is normally associated with a lead screw or ball screw drive. The linear motor drive also offers the advantage of higher speeds and accelerations. The compact yet powerful linear motor drives the ALS135 to a peak unloaded acceleration of 1 g and a maximum velocity of 300 mm/s. The result is a high-accuracy device with outstanding throughput that significantly outperforms comparable high-accuracy screw-driven stages.
