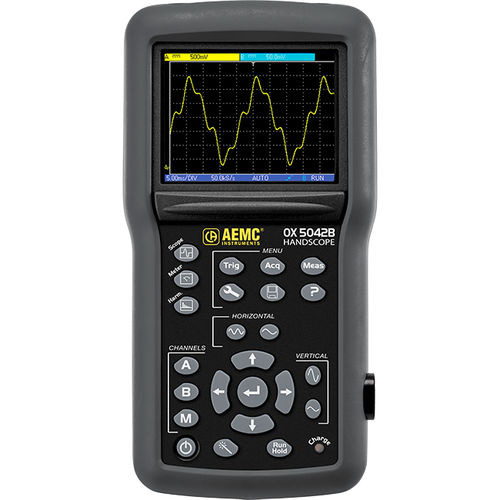

Digital oscilloscope OX 5042B

2-channelportablefor the aeronautical industry

The compact, shockproof, IP54, 3-in-1 Handscope Model OX 5042B can be comfortably held in one hand. The Handscope is an ergonomically designed instrument equipped with a 3.5” color screen with LED backlighting for a precise and crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use. The Model OX 5042B combines three measuring instruments in one: Oscilloscope, 2 fully isolated channels, 40 MHz bandwidth, vertical sensitivity 5 mV to 200 V/div 2 fully isolated channel multimeter, 8000-count display, with power measurements 2 fully isolated channel harmonic analyzer, up to the 31st harmonic (fundamental frequency from 40 Hz to 450 Hz) 2 MB of storage are available for recording data. In the multimeter mode, it is possible to store graphic recordings of 2700 measurements from 5 min to 1 month. Communication via isolated USB SCPI protocol. This makes it simple to program the instrument remotely with the supplied SX-METRO software. This product has been developed using an Eco-Design approach to reduce its environmental impact and is supplied with a 3-year warranty. CHANNELS Inputs / Bandwidth - 2 X 600 V Isolated channels / 40 MHz Input Impedance - 1 MΩ ± 0.5 %, 17 pF INTERFACE Screen Specifications - Color 3.5 in TFT LCD 320 x 240 – LED Backlighting Display Mode - 2500 real acquisition points on screen Traces On Screen - 2 Traces + 2 References + memory trace or Math calculation Front Panel Control - 24 keys VERTICAL Vertical Sensitivity - 5 mV to 200 V/div and up to 156 μV/div in vertical zoom mode (12-bit converter) – Accuracy ± 1 % Max Input Voltage - 600 Vrms CAT III – Derating -20 dB per decade from 100 kHz HORIZONTAL
