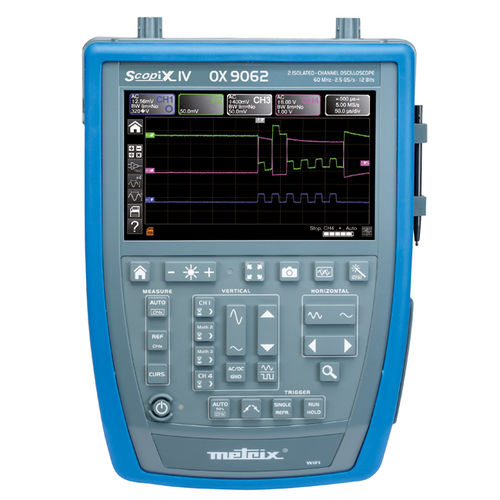

Digital oscilloscope OX 9062 IV

2-channelbench-topportable

The Model OX 9062 Oscilloscope is a rugged, ergonomic, self-contained, hand-held, two-channel oscilloscope with 60MHz bandwidth, 2 channel DMM 8000 cts, FFT function and recording mode, and power measurement. Large touch screen 7” color LCD display Ideal for both laboratory and field use, the Model OX 9062 utilizes the patented system of “plug-and-play” accessories, individual isolation of each of the measurement channels, and a range of remote management capabilities. The Ethernet link and Wi-Fi lets you remotely control the oscilloscope without loading any software to your PC. Android App available to download from Google play store. CHANNELS Inputs / Bandwidth - 2 Isolated channels Input Impedance - 1MΩ ± 0.5%, approx. 12pF INTERFACE Screen Specifications - Color 7" WVGA TFT LCD touch screen, 800 x 480 Display Mode - Vectors with interpolation - 2500 real acquisition points on screen Traces On Screen - 2 Traces + 2 References (split screen and full screen modes) Front Panel Control - 32 keys Screen Control - Touch screen - ANDROID type icons and graphical commands VERTICAL Vertical Sensitivity - 16 ranges from 2.5mV - 200V/div and up to 156µV/div om vertical zoom mode (12-bit converter) - Accuracy ±2% Max Input Voltage - 600V/CAT III (1000V per Probix) – from 50 to 400 Hz - Probix connectors Vertical Zoom - "One click Winzoom" system (direct graphical zoom onscreen) x 16 max HORIZONTAL Time Base Speed - 35 ranges from 1ns/div. - accuracy ±[50 ppm + 500 ps] - Roll mode from 100 ms to 200 s/div Horizontal Zoom - "One click Winzoom" system (direct graphical zoom onscreen) x 100 max TRIGGER Mode - Auto, Triggered, One-shot, Auto-level 50% on all channels
