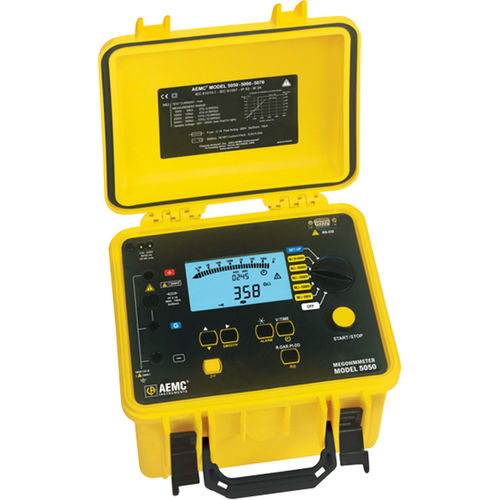

Portable megohmmeter 5050

for the aeronautical industry

The Digital/Analog Megohmmeter Model 5050 is the latest design in 5000V insulation testers. Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR), Polarization Index (PI) and Dielectric Discharge (DD). The True Megohmmeter® Model 5050 displays the test voltage, insulation resistance and the leakage current during the test. Capacitance of the sample and discharge voltage present at the test leads are displayed at the conclusion of the test. This meter is designed with the highest level of built-in safety features. The Model 5050 can be operated from an internal rechargeable battery or from AC line power. AC/DC Voltage Measurement Range - 1 to 4000V Accuracy - 1 to 99.9V: ±(1% R + 5ct) 100 to 4000V: ±(1% R + 3ct) Resolution - 1 to 99.9V: 0.1V 100 to 999V: 1V 1000 to 4000V: 2V Frequency Range - 1 to 2500V: DC or 15 to 500Hz 2501 to 4000V: DC Input Impedance - 750kΩ or 3MΩ (range dependent) Insulation Measurement Test Voltage / Resistance Range - 500V: 30kΩ to 2TΩ 1000V: 100kΩ to 4TΩ 2500V: 100kΩ to 10TΩ 5000V: 300kΩ to 10TΩ Variable Voltage - 40 to 5,100V Auto Discharge - Discharge time 3, 10, 20% (selectable by user) of test voltage
