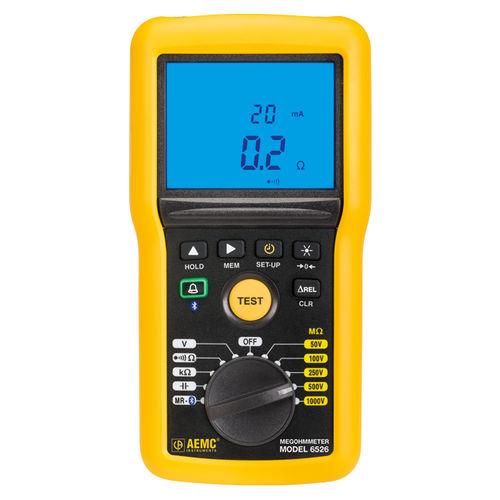

Portable megohmmeter 6526

for the aeronautical industry

True Megohmmeter® 50V, 100V, 250V, 500V and 1000V Insulation Test Voltages DAR and PI ratios calculated Timed Test Mode up to 40 minutes for Insulation Resistance Test Test Lock feature for hands free timed measurements up to 15 minutes Continuity tests at 20mA or 200mA Test lead resistance compensation for accurate low resistance measurements True RMS AC/DC Voltmeter up to 700V Ohmmeter to 1000kΩ Capacitance to 10µf Frequency measurements from 15 to 800Hz Auto discharge after Insulation Test Hold function to "freeze" readings Large and bright dual display with blue backlight Pass/Fail indicator with green/red backlight Auto Standby Feature due to inactivity saves battery power 1300 Measurement storage in memory Bluetooth communication with included DataView software Complies with International Insulation Testing Standards including IEC/EN 61557 600V CAT IV Optional Remote Probe accessory AC/DC Voltage Measurement Range - 0.3 to 700V Accuracy - ±(3% R + 2ct) Resolution - 1 to 99.9V: 0.1V 100 to 999V: 1V 1000 to 4000V: 2V Frequency Range - DC & 15.3 to 800Hz Input Impedance - 400kΩ Insulation Measurement Test Voltage / Resistance Range - 50V: 10kΩ to 10GΩ 100V: 20kΩ to 20GΩ 250V: 50kΩ to 50GΩ 500V: 100kΩ to 100GΩ 1000V: 200kΩ to 200GΩ
