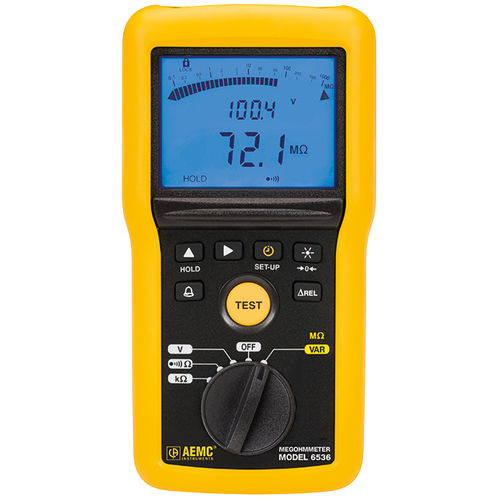

Portable megohmmeter 6536

for the aeronautical industry

True Megohmmeter® 10 to 100V (variable) Insulation and Multi-Function Tester (Resistance, Continuity and Voltage) Variable 10 to 100V (1V increments) Insulation Test Voltages 20GΩ Max Insulation Resistance Timed Test Mode up to 40 minutes for Insulation Resistance Test Test Lock feature for hands free timed measurements up to 15 minutes Continuity tests at 20mA or 200mA Test lead resistance compensation for accurate low resistance measurements True RMS AC/DC Voltmeter up to 700V Ohmmeter to 1000kΩ Auto discharge after Insulation Test Hold function to "freeze" readings Large and bright dual display with blue backlight Auto Standby Feature due to inactivity saves battery power Optional Remote Probe accessory Optional Electro Static Discharge (ESD) Floor Test Kit (Cat. # 2155.57) for testing both point-to-ground and point-to-point electrostatic discharge AC/DC Voltage Measurement Range - 0.3 to 700V Accuracy - ±(3% R + 2ct) Resolution - 1 to 99.9V: 0.1V 100 to 999V: 1V 1000 to 4000V: 2V Frequency Range - DC & 15.3 to 800Hz Input Impedance - 400kΩ Insulation Measurement Test Voltage / Resistance Range - Test Voltage: Variable 10 to 100V (1V steps) 10V: 2kΩ to 2GΩ 25V: (Vtest/5)kΩ to (Vtest/5) GΩ 100V: 20kΩ to 20GΩ
