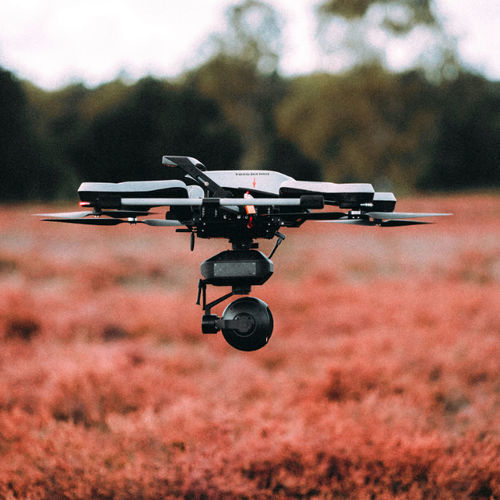

Professional UAV ZOE

mappingsurveillanceinspection

Designed to perform- crafted by hand in The Netherlands. Motors Acecore brushless motors Autopilot Cube Power Tattu 4500mAh up to Tattu 17000mAh Wind resistance 30 knots/ 15.4 m/s continuous DOWNLOAD SPECSHEET Datalink range Build True carbon fiber AERODYNAMIC DESIGN Zoe’s aerodynamic dutch-design carbon fiber frame puts it in a class of its own. The way it doesn’t hang, but rather stand in the air makes it highly weather proof. The Acecore Zoe is both wind and rain resistant which means it can operate at contiuous wind speeds of 7 Beaufort/ 30 knots with rain up to 9mm/h. The hollow arms generate an active airflow though the entire system and pulls hot air out of the motor mounts, away from the critical components. As a result Zoe will operate at temperatures up to 50 degrees Celsius. MODULAR SYSTEM Designed with versatility in mind, Zoe’s body is modular and can easily be taken apart for hardware upgrades and customizations. The heatsink has several mounting points where additional gear can be secured, and the payload mount is configurable to allow for many third party payload integrations. UNLIMITED FLIGHT TIME Tethering Zoe to an Elistair Safe-T 2 station gives professionals access to unlimited flight times. At 80 meters height, Zoe can carry a payload of 2.7 kilograms like a Workswell WIRIS Security in a Gremsy S1 gimbal all day. In a tethered operation Zoe can follow any moving vehicle autonomously- it will keep its position above the van, truck, UGV, boat or ATV that the Safe-T 2 and high accuracy RTK GPS is mounted to. Leverage this autonomous vehicle follow me function for new applications such as convoy protection or car LiDAR scanning.
