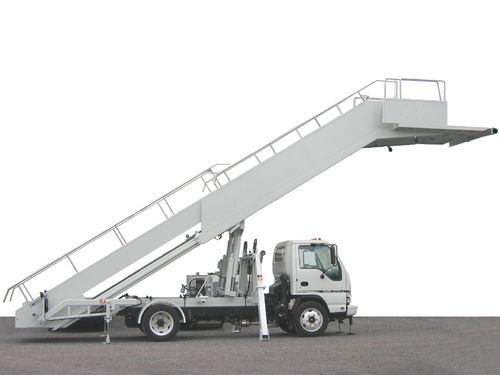

Boarding stairs

mobileself-propelledfor aircraft

APS Passenger Airstairs - Narrow and Wide Body Offering the widest range of optional and specialty features in the industry, including covers and canopies, wheelchair lift platform and adaptation as a Fire & Rescue vehicle, (see the APS60FR). Ask about our smaller truck-mounted 42” (1066 mm) stair parallelogram model to service doorsill heights between 96” (2400 mm) to 140” (3556 mm) or 177” (4495 mm) Description of Chassis Ford F450 4 x 2 chassis Isuzu NPRHD AccessAir chassis Upgrades are required if cover & dual-canopy assemblies are selected. Standard Dimensions Overall size may vary according to chassis and options chosen: Stair width: 60” (1520 mm) Upper Platform Size: Width 100” (2540 mm) x Depth 115” (2920 cm) Design Standards Manufactured to North American and International Codes: - SAE standards for Airstairs - I.A.T.A. standards for Passenger Boarding Stairs No. AHM 910, 913 and 915 as well as A.S.M.E and UL Construction Upper and lower stairs fabricated with structural and tubular steel frame Single layer galvanized side panels to prevent rusting Top platform width & depth allows for opening door of aircraft without sliding the gate back Risers and top platform manufactured with checker aluminum anti-skid plates Handrails fabricated using polished stainless steel Rubber bumpers on platform forward edge and on sliding door edge Electric Systems (8) Flood lights to illuminate front, side and back of vehicle, as well as upper platform Fully-illuminated steps - (one light on each step) Control panel in cab, optional control panel on top platform Warning lights in cab 12 volt power Standard chassis gauges and indicators
