Boarding stairs

mobileself-propelledwith covered area

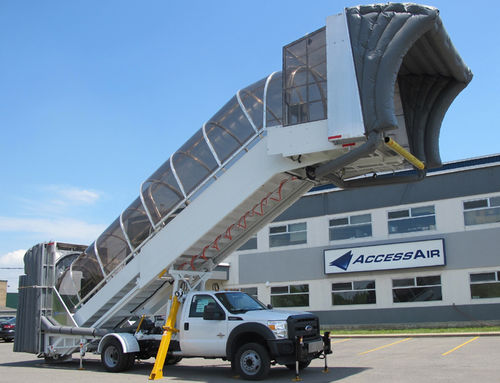

APS Passenger Airstairs - Single & Dual Canopy Options Offering the widest range of optional and specialty features in the industry. Overview Dual Canopy System for full comfort and security from aircraft door into the airport bus. Polycarbonate cover with Single Canopy for coverage of aircraft door, top platform and stairs. Wheelchair lift can be incorporated into the Airstair structure. Description of Chassis Ford F-550 (or equivalent) is required for the installation of cover/dual canopy assembly Ford F-450 (or equivalent) with 16,500 lb. GVW is suitable for the installation of cover/single canopy assembly Isuzu NPRHD AccessAir chassis Diesel or gasoline engines, automatic transmission and left-hand drive. Standard Dimensions Overall size may vary according to chassis and options chosen Stair width: 60” (1520 mm) Upper Platform Size: Width 100” (2540 mm) x Depth 115” (2920 cm) Design Standards Manufactured to North American and International Codes: - SAE standards for Airstairs - I.A.T.A. standards for Passenger Boarding Stairs No. AHM 910, 913 and 915 as well as A.S.M.E and UL Construction Upper and lower stairs fabricated with structural and tubular steel frame Single layer galvanized side panels to prevent rusting Top platform width & depth allows for opening door of aircraft without sliding the gate back Risers and top platform manufactured with checker aluminum anti-skid plates Handrails fabricated using polished stainless steel Rubber bumpers on platform forward edge and on sliding door edge Electric Systems (8) Flood lights to illuminate front, side and back of vehicle, as well as upper platform Fully-illuminated steps - (one light on each step)
