NDT thickness gauges

Measuring range: 5 µm - 140 µm

... unique soft-touch probe on the copper surface and note the thickness measurement on the indicator. This gauge uses field-proven micro resistance technology to sort copper foil and laminates by thickness. ...

Measuring range: 0 µm - 254 µm

... regardless of the temperature of the copper. It is an ideal gauge for quality assurance and inspection for: PCM manufacturing and assembly. Copper surface thickness. Our CMI165® gauge ...

Measuring range: 2 µm - 102 µm

Plated thru-hole copper thickness with temperature compensation RAPIDLY MEASURE PLATED THRU-HOLE COPPER THICKNESS PRIOR TO, AND AFTER ETCHING The CMI511® has an exclusive temperature compensation ...

Measuring range: 0.25 µm - 152 µm

... laminate thickness. Our CMI563® makes it simple to obtain precise surface copper measurement on laminate, electroless, or electrolytic copper. This gauge is an ideally suited for: PCB manufacturing ...

Measuring range: 1 µm - 102 µm

... testing for the accurate and precise measurement of copper. Optional accessories are available to measure thru-hole copper thickness. SRP-4 PROBE The CMI760® includes a tethered SRP-4 Probe with user-replaceable tips ...

Measuring range: 0 mm - 3.01 mm

... handheld coating thickness gauge with the accuracy of a benchtop HIGH PERFORMANCE, RUGGED DESIGN THAT IS AFFORDABLE The CMI233® gauge provides a reliable means for performing accurate, ...

Measuring range: 0 µm - 3,500 µm

Advanced coating thickness on ferrous and non-ferrous metal substrates QUALITY ASSURANCE FOR THICKNESS OF PAINT, LACQUER, ZINC AND OTHER PROTECTIVE COATINGS ON METAL SUBSTRATES Two probe configurations ...

Measuring range: 2.5 µm - 1,000 µm

Versatile benchtop gauge for electroplating, galvanising, anodising and paint THE CMI730 ® PROVIDES ADVANCED PLATING AND PROCESS COATING CONTROL FOR COATING PROFESSIONALS This easy-to-use instrument with an ergonomic ...

Measuring range: 0.2 mm - 635 mm

... ultrasonic thickness gauge delivers precision thickness measurements at high speed in a portable, easy-to-use device. With fast scanning, advanced algorithms, and our lowest-ever minimum ...

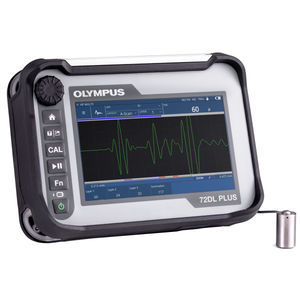

Measuring range: 0.08 mm - 635 mm

... PLUS is an innovative instrument that signals a new era in ultrasonic thickness gauging. Ideally suited for almost every ultrasonic thickness application, this handheld thickness gauge ...

Measuring range: 0.08 mm - 635 mm

... Features From a simple corrosion gauge to a multi-purpose precision thickness gauge with only a few key strokes. The 45MG offers five code-activated software options that makes it one ...

The Magna-Mike® 8600 is a portable thickness gauge that uses a simple magnetic method to make reliable and repeatable measurements on nonferrous materials. Operation of the Magna-Mike is very simple. ...

Measuring range: 0.5 mm - 635 mm

The Olympus 27MG is an affordable ultrasonic thickness gauge designed to make accurate, measurements from one side on internally corroded or eroded metal pipes, tanks, and other equipment. It weighs only ...
