Double-column machining centers

Rotational speed: 15,000 rpm
X travel: 762 mm
Y travel: 460 mm

Our new, next-generation, 5-axis vertical machining center is specifically designed to manufacture high-precision parts and deliver impressive metal removal rates in a compact design. Its solid double-column ...

Rotational speed: 10 rpm - 10,000 rpm
X travel: 3,000 in

Our Okuma MCR-BIII double column machining center provides five-face machining of parts in a single, economical, and efficient setup. The ram-type head ...

Rotational speed: 3,000 rpm
X travel: 2,800 mm
Y travel: 2,000 mm

... Φ130 mm and 550 mm stroke provides accessibility to machining areas that normally are difficult to reach The integral spindle / motor with 45 kW (60 HP) [ 40 % ED ] ensures high-accuracy machining of ...

Rotational speed: 10,000 rpm
X travel: 4,200 mm
Y travel: 2,450 mm

... manufacturing equipment and large dies and molds machining. Additionally, it provides higher productivity by making five surface machining possible thanks to the new optional angle head attachment for ...

Rotational speed: 30,000 rpm
X travel: 6,000 mm
Y travel: 2,300 mm

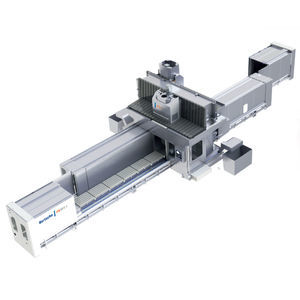

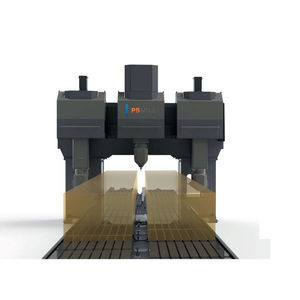

The Bertsche P5 Mill Series has been specifically designed to produce aircraft structural parts such as floor beams, stringers and frames. The P5MILL’s portal construction design maximizes the work envelope while minimizing the overall ...

X travel: 6,000 mm
Y travel: 1,775 mm
Z travel: 800 mm

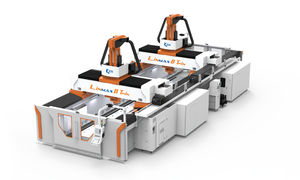

... benefits associated with having two machines but with lower operating costs; two independent 5 axis machining modules each with a separate machining compartment; Ability to machine two different parts ...

Rotational speed: 12,000 rpm
X travel: 3,000 mm
Y travel: 2,000 mm

... design saddle and ram for heavy-duty machining -Duo block structure design Specially designed saddle and ram for heavy-duty machining MTH enlarges the size of the head from 400mmX450mm to 540mmX540mm. ...

X travel: 3,060, 4,060, 2,060 mm
Y travel: 2,000, 2,300 mm
Z travel: 800, 1,000 mm

... one-piece column and crossbeam structure. X/Y-Axis linear motor drive. Rapid feedrate:60m/min. Direct-drive motor two-axis milling head. High-speed 5-axis machine center High ...

Rotational speed: 35 rpm
X travel: 1,500, 2,000 mm
Y travel: 1,250, 1,400 mm

Double Column High Speed 5-Axis Machine Center One-piece base and column with high rigidity X/Y-axis adopt linear motor direct-drive Rapid feedrate Max. 60m/min European ...

X travel: 3,200 µm - 8,000 µm
Y travel: 2,200, 2,500, 3,000, 3,500, 4,000 mm
Z travel: 1,000, 1,250 mm

Double Gantry type structure X/Y axis adopt linear motor drive Box-in-box symmetrical design One-piece base column design Rapid feedrate 60m/min(Max) European torque motor direct-drive milling ...

Rotational speed: 50 rpm
X travel: 1,800 mm
Y travel: 1,300 mm

Moving crossbeam with double column design One-piece H-shaped column design Y-axis adopt "symmetrical dual-drive" design European mechanical milling head with high ...

X travel: 3,000, 4,000, 5,000, 6,000 mm
Y travel: 2,400, 2,800, 3,300 mm
Z travel: 800, 1,000 mm

Advanced short column design European high-torque mechanical transmission milling head Achieve The Stability & Excellent Cutting Performance 1. Z-axis adopt box guideway design, using double ...
